Linear motors - also referred to as linear servo motors - feature a forcer rod that travels back and forth along a straight axis. This enables the linear drive to produce torque in a straight line.
FAULHABER linear motors combine compact dimensions with high power density and outstanding dynamics. Their cogging-free design makes them ideal for applications requiring exceptional repeatability.
Whether in optics, factory automation, aerospace or metrology, the micro linear motors from FAULHABER offer maximum efficiency and a long service life with virtually zero maintenance, making them a perfect fit for a wide range of applications.
Linear motion can be achieved in two ways: with a linear motor using a forcer rod, or via a linear actuator, where the rotational movement is converted into linear motion via transmission elements such as lead screws or gears.
FAULHABER’s product portfolio includes both technologies: small linear motors for high-speed motion and long service life, and micro linear actuators for applications requiring high torque or maximum precision.

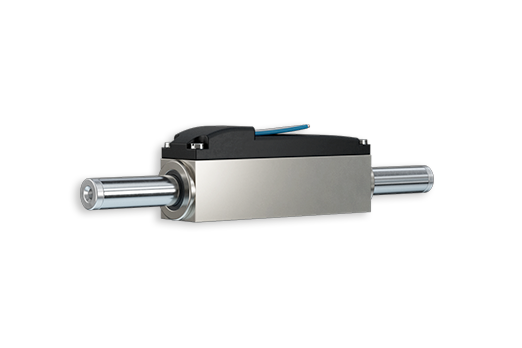

Linear motors
Ideal for tasks requiring high speed and repeatability
Length: 33 mm ... 85.5 mm
Speed: 1.8 m/s ... 3.4 m/s

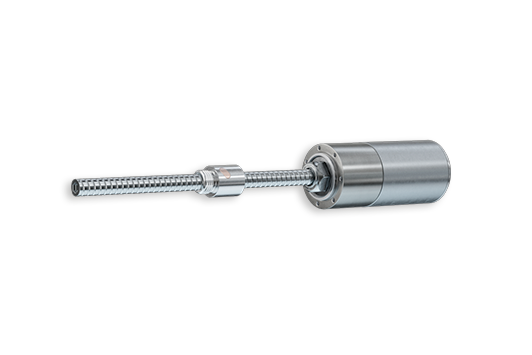

Geared linear actuators
High input speeds and output forces thanks to gearhead reduction
Diameter: 6 mm ... 32 mm
Reduction ratio: 1 ... 1294

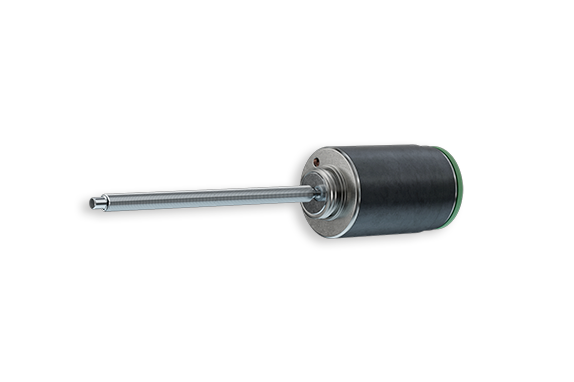

Direct drive linear actuators
For highly precise applications with low load
Diameter: 1.2 mm ... 3 mm
Let’s talk – we’ll help you determine whether a linear motor or a linear actuator is the best fit for your project.
✓ High dynamics and acceleration
✓ Excellent force-to-volume ratio
✓ No residual force present
✓ Compact and robust construction
✓ Custom solutions for your application
✓ Personal contact
✓ 75 years of experience
✓ Customized solutions
Do you want to know which linear drive is the best fit for your project? Our engineers are happy to support you in selecting the optimal product.
Simply fill out the contact form and we’ll get back to you shortly.
Or use the FAULHABER Drive Calculator to determine the right electric DC-motor for your application.
Let us guide you to your perfect drive solution.
Just fill out the form and click on “Start Drive Calculator”.
